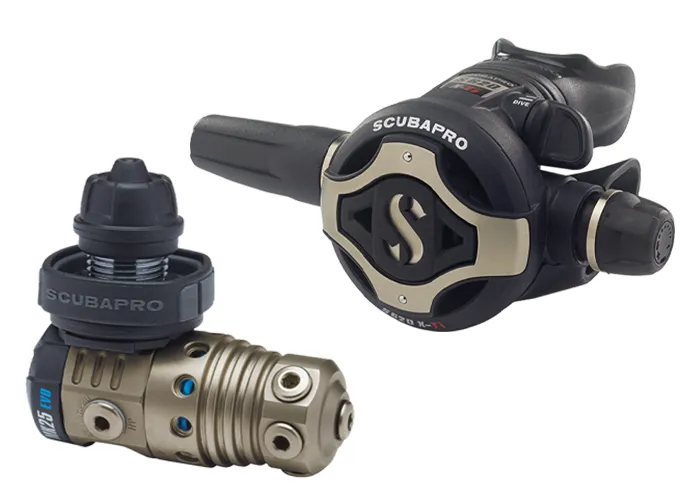

The MK25T first stage has a balanced through-flow piston design that is capable of delivering incredible gas flow rates regardless of depth, cylinder pressure or breathing rate. The first stage uses a combination of anti-freeze coatings and components to meet and surpass the requirements for cold water rating. It is fitted with four low-pressure high flow ports around the outside of a swivelling turret and a fifth port on the end that provides optimal hose routing for technical diving. Two opposing high-pressure ports allow the first stage to be positioned either up or down.
The S620 X-Ti second stage is an evolution of the S600. It features a new titanium valve inlet tube that is lighter and corrosion-resistant and a smaller housing design that utilises the same diaphragm as the S600 for outstanding performance. The second stage uses a pneumatically balanced valve design for a smooth breathe that can be tailored by adjusting the inhalation effort control knob. There is also a lever to adjust the venturi effect with the housing, allowing it to be switched to Pre-Dive for water entry and reduced risk of freeflow or Dive mode for optimal performance and gas flow to the mouthpiece.
VIDEO CONSULTATIONS NOW AVAILABLE: We're bringing our highly experienced and knowledgeable staff to you with live-streaming consultations. If you need help choosing the right bit of kit or the best size before buying or even advice on whether a purchased item is the right fit for you, then book yourself a .
Features
First Stage
- Air-balanced flow-through piston design
- Patented XTIS (Extended Thermal Insulating System)
- Anti-freeze protection radically increases breathing reliability when diving in the most extreme water temperatures
- Two opposing high pressure ports allow the first stage to be positioned either up or down
- Four high-flow and one axial super high-flow low pressure ports
- DIN version comes with a dual-compound wheel
- Airflow at 200bar: >8500 l/min
- Intermediate pressure: 9.2-9.8 bar
Second Stage
- Air-balanced valve smoothes out the inhalation effort
- Rugged reinforced technopolymer case and front cover
- Titanium barrel is rugged, anti-corrosion and lightweight for long term reliability
- Uses the S600’s large diaphragm inside a compact casing for maximum breathing sensitivity
- User controls include an easy-grip diver-adjustable inhalation effort knob and Venturi-Initiated Vacuum Assist (VIVA) lever
- Super-flow hose features an oversized bore that allows more air to flow on each inhalation
- Ultra-comfortable compact orthodontic mouthpiece is easy to grip yet doesn’t inhibit airflow
- Compact Hi-Flow mouthpiece improves airflow and mouth comfort, fitting all mouth sizes
- Airflow at 200bar: 1850 l/min
Please note: We cannot ship Scubapro items outside the EMEA -
